Vertical Lifting Clamp VDA

  • 1, Most popular and best selling;
  • 2, Capacity options 500kg-30ton;
  • 3, Beam width 0-100mm;
  • 4, 3-year warranty;

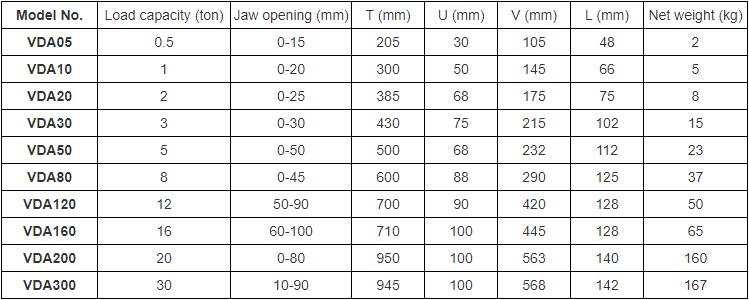

  • Product description: Load Capacity: 500kg/1ton/2ton/3.2ton/5ton/8ton/12ton/16ton/20ton/30ton; Jaw opening: 0-50mm/50-90mm/60-100mm;

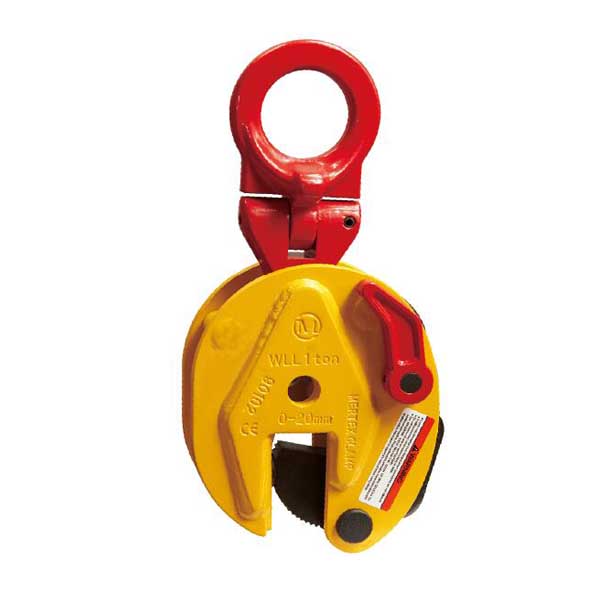

Vertical Plate Clamp Lock Lever Type
▲ The Vertical Hinged Lifting Clamp is suitable for the lifting, turning (180°) and vertical transfer of steel plates and constructions.
▲ It is fitted with a locking device.
▲ Fitted with a hinged hoisting eye moving in all directions so as to enable the user to place and lift the load from any direction.
▲ The lifting clamps are fitted with special hook-up facilities to enable easy fitment of the clamp in horizontal position.
▲ The new models have a greater jaw Aperture enabling plates of varying thickness to be lifted with the same clamp.
▲ Conforms to CE safety standard.
