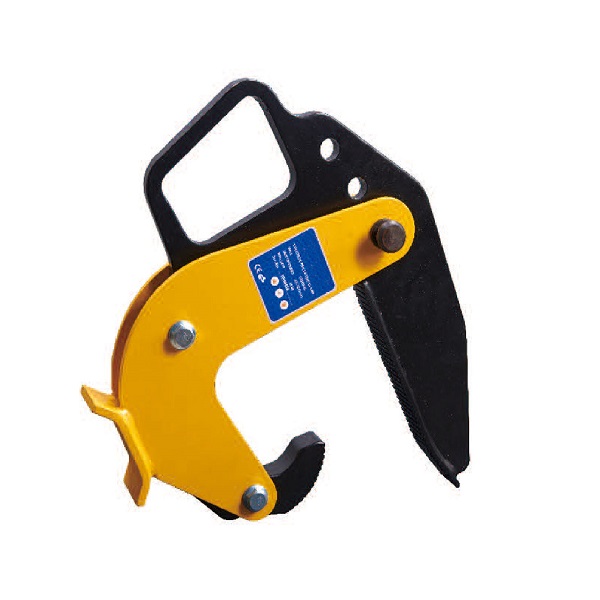

Concrete Clamp PLG

  • 1, Most popular and best selling;
  • 2, Capacity options 1500-3000kg;
  • 3, Optional Jaw opening;
  • 4, 3-year warranty;
  • Product description: Load Capacity: 1500kg/3000kg; Jaw opening: 40-120-180-220mm;

Concrete Pipe Lifting Clamp
▲ Lifting clamp for the vertical transport of concrete pipe and culverts must be very vertiatile.
▲ Most important it must be absolutely safet and easy to handle under even the harshest conditions.

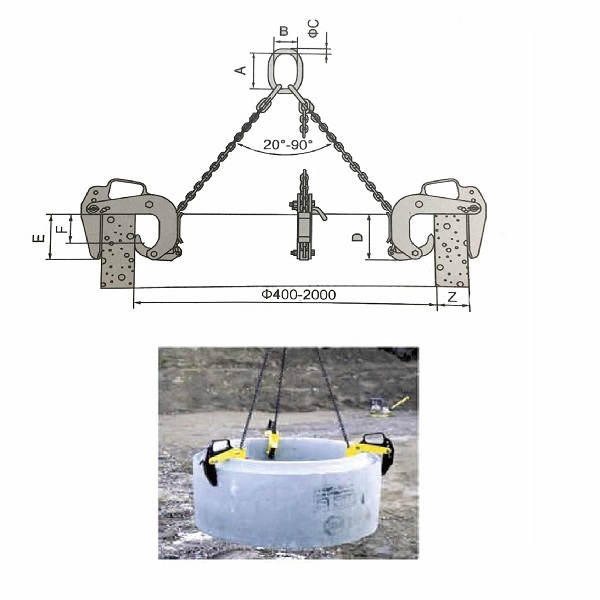

▲ It is a three-legged lifting system for the safe and non-marring transport of concrete pipes up to a diameter of 2000mm and a load of up to 3t.
▲ The jaw capacity is designed for concrete pipe thickness from 40-200mm.
▲ Attachment and removal of the clamps can be done easily due to the handles that have been incorporated into each clamp.
▲ Solid construction.
▲ Type-tested 4:1 against breakage.
▲ For heavy duty us, but light weight design.
▲ For concrete pipes according to DIN4034.
