Hand Trolley

  • Aluminuml AF
  • Aluminuml AF
  • Aluminuml AF
Aluminuml AFAluminuml AFAluminuml AF

Aluminuml AF

  • 1, Aluminum platform Truck;
  • 2, Removeable handle/Double handle;
  • 3, PU/Rubber wheels, 2xfixed + 2xswivel;
  • 4, 3-year warranty;
  • Product description: capacity 450kg(1000lb)/540kg(1200lb)/900kg(2000lb); Platform size 24''x36'', 24''x48'', 30''x48'', 30''x60'', 30''x72''; High quality PU wheels;
  • INQUIRY   EMAIL

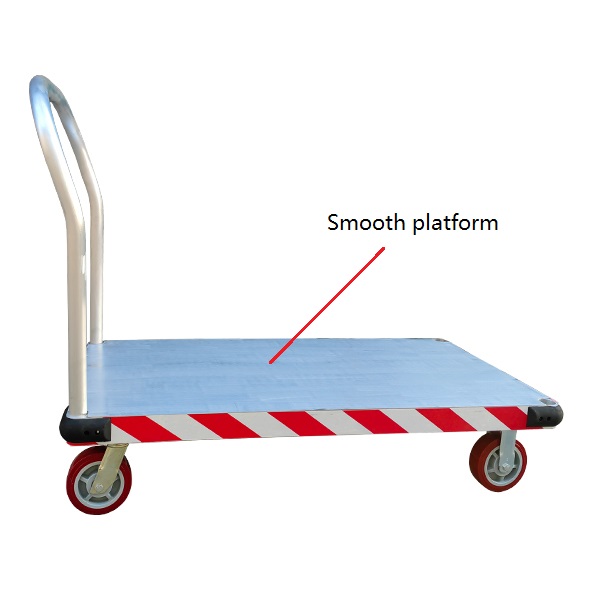

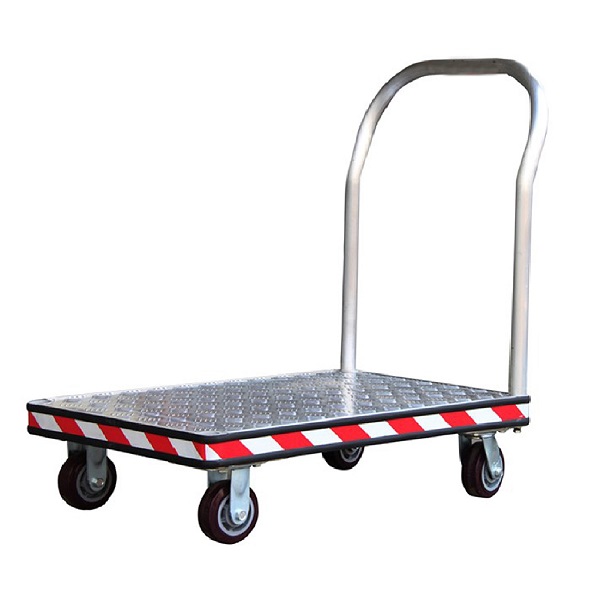

ALUMINUM PLATFORM TRUCK HAND TRUCK
▲ Ideally suited for hot, wet applications.
▲ Lightweight,corrosion-resistant,aluminum platform trucks have a clean,handsome appearance and are built for heavy-duty use.
▲ Use them in the front office, stock room,warehouse,dock area,or laboratory.
▲ Unitized box frame is made of hight strength all welded aluminum channel with heavy duty deck.

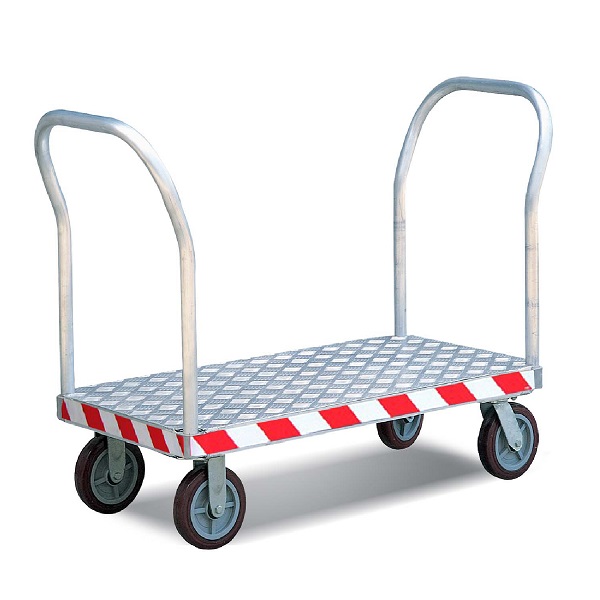

▲ Corner sockets at both ends allow handles to be used on either or both ends of truck.
▲ Two swivel and rigid casters for smooth mobility.
▲ Additional handle as option.
▲ Model H24 for platform 24x36" 24x48"
▲ Model H30 for platorm 30x48" 30x60
▲ Model H36 for platform 36x72"



Model No.
AF2436 AF2448 AF3048 AF3060 AF3672
Capacity (kg/lbs) 900/2000 900/2000 900/2000 900/2000 900/2000
Platform Size (mm/inch) 610x915/24x36 610x1220/24x48 760x1220/30x48 760x1525/30x60 915x1830/36x72
Platform Height (mm/inch) 238/9.4 238/9.4 238/9.4 238/9.4 238/9.4
Handle Height (mm/inch) 995/39.2 995/39.2 995/39.2 995/39.2 995/39.2
Casters
Polyurethane Polyurethane Polyurethane Polyurethane Polyurethane
Casters Size (mm/inch) 125x50/5x2 125x50/5x2 125x50/5x2 125x50/5x2 125x50/5x2
N.W (kg/lbs) 20/44 25.5/56.1 28/61.6 33/72.6 38.5/84.7

Model No.
BF2436 BF2448 BF3048 BF3060 BF3672
Capacity (kg/lbs) 1350/3000 1350/3000 1350/3000 1350/3000 1350/3000
Platform Size (mm/inch) 610x915/24x36 610x1220/24x48 760x1220/30x48 760x1525/30x60 915x1830/36x72
Platform Height (mm/inch) 258/10.2 258/10.2 258/10.2 258/10.2 258/10.2
Handle Height (mm/inch) 1015/40 1015/40 1015/40 1015/40 1015/40
Casters
Polyurethane Polyurethane Polyurethane Polyurethane Polyurethane
Casters Size (mm/inch) 150x50/6x2 150x50/6x2 150x50/6x2 150x50/6x2 150x50/6x2
N.W (kg/lbs) 21/46.2 26.5/58.3 29/63.8 34/74.8 39.5/86.9

Model No.
CF2436 CF2448 CF3048 CF3060 CF3672
Capacity (kg/lbs) 540/1200 540/1200 540/1200 540/1200 540/1200
Platform Size (mm/inch) 610x915/24x36 610x1220/24x48 760x1220/30x48 760x1525/30x60 915x1830/36x72
Platform Height (mm/inch) 338/13.3 338/13.3 338/13.3 338/13.3 338/13.3
Handle Height (mm/inch) 1095/43.1 1095/43.1 1095/43.1 1095/43.1 1095/43.1
Casters
Pneumatic Pneumatic Pneumatic Pneumatic Pneumatic
Casters Size (mm/inch) 200x50/8x2 200x50/8x2 200x50/8x2 200x50/8x2 200x50/8x2
N.W (kg/lbs) 24/52.8 29.5/64.9 32/70.4 37/81.4 42.5/93.5
