Hand Trolley

  • Wooden Platform CZ
  • Wooden Platform CZ
  • Wooden Platform CZ
  • Wooden Platform CZ
Wooden Platform CZWooden Platform CZWooden Platform CZWooden Platform CZ

Wooden Platform CZ

  • 1, Wooden Platform Truck;
  • 2, With/without mesh or woden guard;
  • 3, 2xfixed + 2xswivel wheels;
  • 4, 3-year warranty;
  • Product description: capacity 500kg; platform size: 800x500mm/ 1000x600mm/ 1000x800mm/ 1200x800mm;
  • INQUIRY   EMAIL

WOODEN PLATFORM TRUCK HAND TRUCK
▲ The easy way to move 500kg.
▲ Base platform and side panels made from plywood.
▲ Highly manceuvrable even on confined surface.
▲ Gentle to flooring,minimal traction resistance at initial movement.
▲ 2 swivel castors with brake and 2 fixed wheels,rubber tires,Ф200mm. All castors/wheels fitted with roller bearings.
▲ Delivered flat packed for easy bolt-on assembly.

Model No.

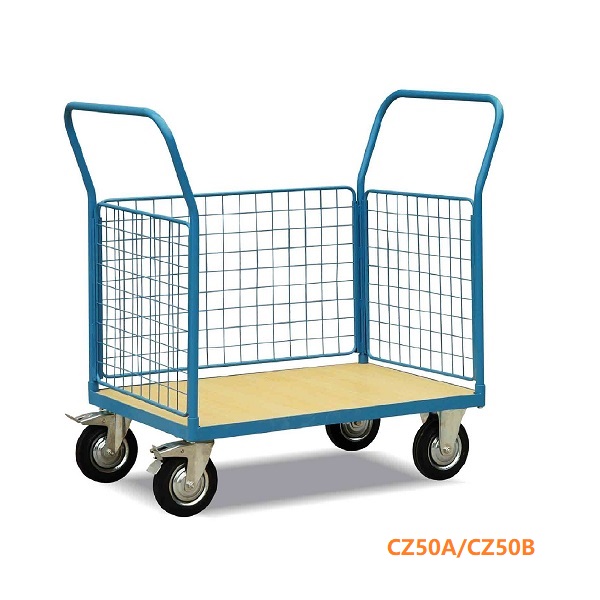

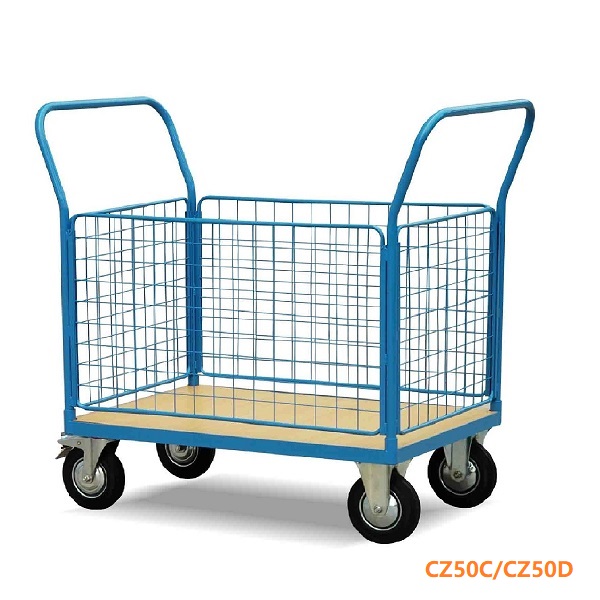

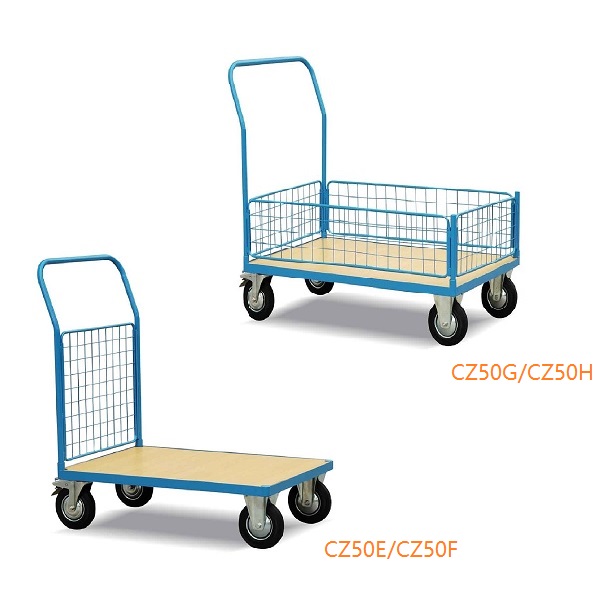

CZ50A CZ50B CZ50C CZ50D CZ50E CZ50F
Load Capacity (kg) 500 500 500 500 500 500
Platform Size (mm) 1000×700 1200×800 1000×700 1200×800 1000×700 1200×800
Platform Height (mm) 270 270 270 270 270 270
Castor (mm) φ200×45 φ200×45 φ200×45 φ200×45 φ200×45 φ200×45
Overall Size (mm) 1200×700×1170 1400×800×1170 1200×700×1170 1400×800×1170 1100×700×1170 1300×800×1170
Net Weight (kg) 44 49 45 50 35 38

Model No.

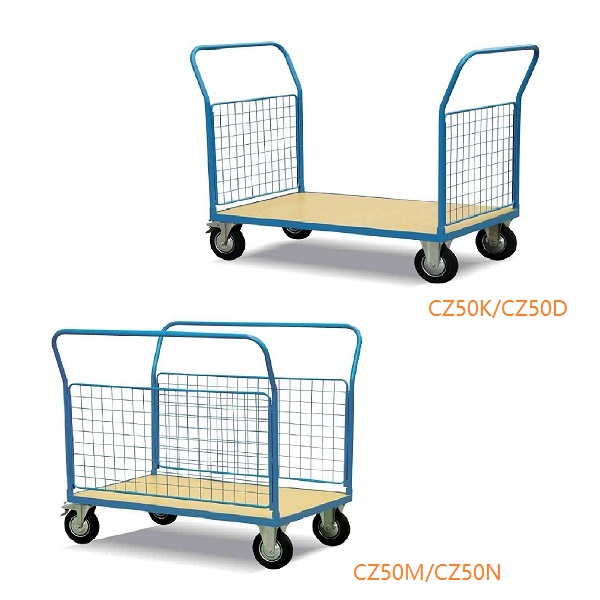

CZ50G CZ50H CZ50K CZ50L CZ50M CZ50N
Load Capacity (kg) 500 500 500 500 500 500
Platform Size (mm) 1000×700 1200×800 1000×700 1200×800 1000×700 1200×800
Platform Height (mm) 270 270 270 270 270 270
Castor (mm) φ200×45 φ200×45 φ200×45 φ200×45 φ200×45 φ200×45
Overall Size (mm) 1100×700×1170 1300×800×1170 1200×700×1170 1400×800×1170 1000×930×1170 1200×1030×1170
Net Weight (kg) 40 43 41 44 43 46

Inquiry
