Hand Trolley

  • Steel Platform YF
Steel Platform YF

Steel Platform YF

  • 1, Steel material platform;
  • 2, Removeable handle;
  • 3, PU wheels, 2xfixed + 2xswivel;
  • 4, 3-year warranty;
  • Product description: capacity 450kg(1000lb)/540kg(1200lb)/900kg(2000lb); Platform size 24''x36'', 24''x48'', 30''x48'', 30''x60'', 30''x72'', 36''x72''; High quality PU wheels;
  • INQUIRY   EMAIL

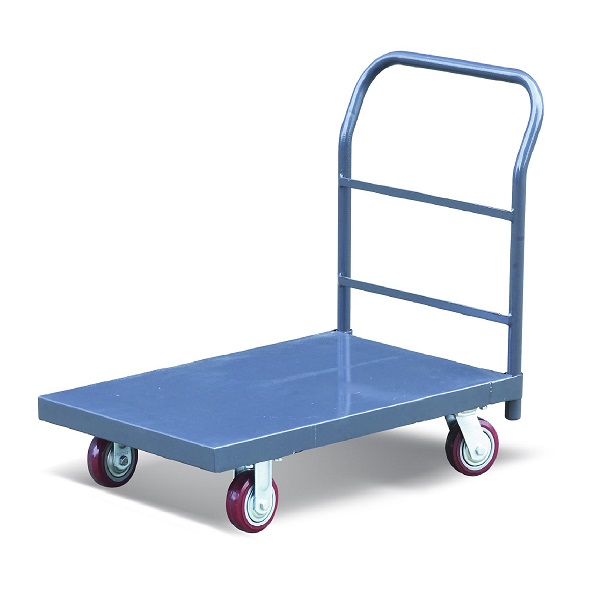

STEEL PLATFORM TRUCK HAND TRUCK
▲ All welded heavy duty 14 gauge steel decks, reinforced with internal.
▲ Longitudinal stiffening members for extra strength.
▲ Removable pipe handle.
▲ Bolt-on casters are double ball race, two swivel and two rigid.
▲ Durable baked gray enamel finish.

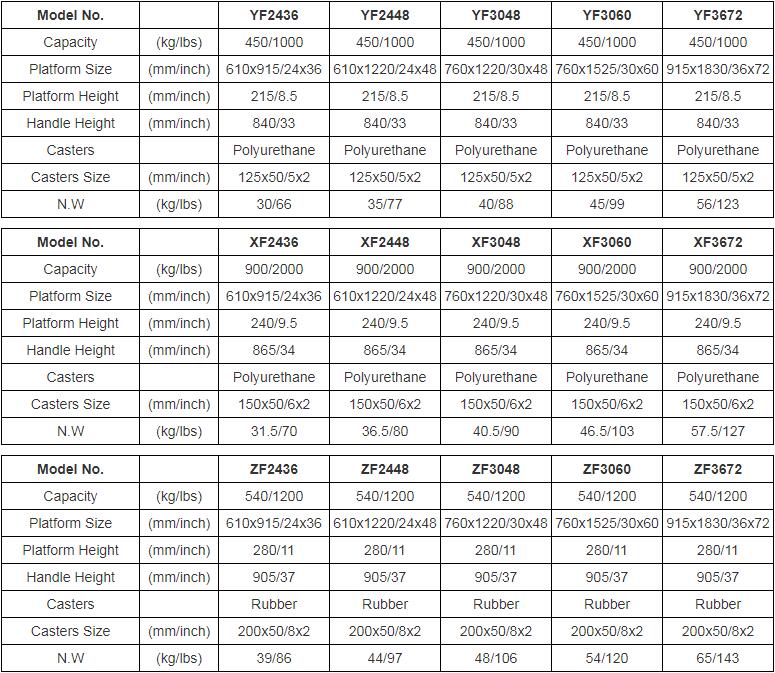

Model No.

YF2436 YF2448 YF3048 YF3060 YF3672
Capacity (kg/lbs) 450/1000 450/1000 450/1000 450/1000 450/1000
Platform Size (mm/inch) 610x915/24x36 610x1220/24x48 760x1220/30x48 760x1525/30x60 915x1830/36x72
Platform Height (mm/inch) 215/8.5 215/8.5 215/8.5 215/8.5 215/8.5
Handle Height (mm/inch) 840/33 840/33 840/33 840/33 840/33
Casters
Polyurethane Polyurethane Polyurethane Polyurethane Polyurethane
Casters Size (mm/inch) 125x50/5x2 125x50/5x2 125x50/5x2 125x50/5x2 125x50/5x2
N.W (kg/lbs) 30/66 35/77 40/88 45/99 56/123

Model No.

XF2436 XF2448 XF3048 XF3060 XF3672
Capacity (kg/lbs) 900/2000 900/2000 900/2000 900/2000 900/2000
Platform Size (mm/inch) 610x915/24x36 610x1220/24x48 760x1220/30x48 760x1525/30x60 915x1830/36x72
Platform Height (mm/inch) 240/9.5 240/9.5 240/9.5 240/9.5 240/9.5
Handle Height (mm/inch) 865/34 865/34 865/34 865/34 865/34
Casters
Polyurethane Polyurethane Polyurethane Polyurethane Polyurethane
Casters Size (mm/inch) 150x50/6x2 150x50/6x2 150x50/6x2 150x50/6x2 150x50/6x2
N.W (kg/lbs) 31.5/70 36.5/80 40.5/90 46.5/103 57.5/127

Model No.

ZF2436 ZF2448 ZF3048 ZF3060 ZF3672
Capacity (kg/lbs) 540/1200 540/1200 540/1200 540/1200 540/1200
Platform Size (mm/inch) 610x915/24x36 610x1220/24x48 760x1220/30x48 760x1525/30x60 915x1830/36x72
Platform Height (mm/inch) 280/11 280/11 280/11 280/11 280/11
Handle Height (mm/inch) 905/37 905/37 905/37 905/37 905/37
Casters
Rubber Rubber Rubber Rubber Rubber
Casters Size (mm/inch) 200x50/8x2 200x50/8x2 200x50/8x2 200x50/8x2 200x50/8x2
N.W (kg/lbs) 39/86 44/97 48/106 54/120 65/143
