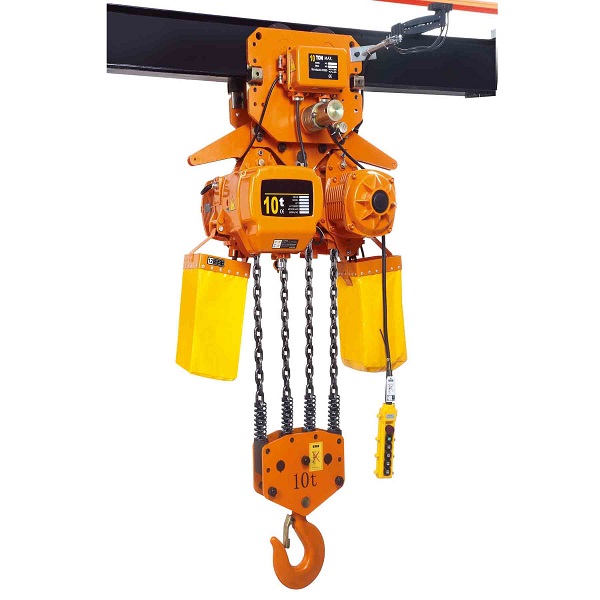

Electric Chain Hoist
▲ Conforms to latest European Standard, certified for CE/GS designed with latest European technology.
▲ This organic adopts die-casting aluminium principle, legerity and agility, up and down position limit protection, phase protection and electromagnetic brake.
|
Model No.
|
Capacity(Ton) | Lifting Height(m) | Lifting Speed(m/min) | Power (kw) | Voltage(v) | Chain Falls | Chain Specification |
| SG05-1 | 0.5 | 3 | 7.2 | 1.1 | 200-440/3P | 1 | Φ6.3 |
| SG10-1 | 1 | 3 | 6.8 | 1.5 | 200-440/3P | 1 | Φ7.1 |
| SG10-2 | 1 | 3 | 3.6 | 1.1 | 200-440/3P | 2 | Φ6.3 |
| SG20-1 | 2 | 3 | 6.6 | 3.0 | 200-440/3P | 1 | Φ10.0 |
| SG20-2 | 2 | 3 | 3.4 | 1.5 | 200-440/3P | 2 | Φ7.1 |
| SG30-1 | 3 | 3 | 5.6 | 3.0 | 200-440/3P | 1 | Φ11.2 |
| SG30-2 | 3 | 3 | 3.3 | 3.0 | 200-440/3P | 2 | Φ10.0 |
| SG30-3 | 3 | 3 | 2.2 | 1.5 | 200-440/3P | 3 | Φ7.1 |
| SG50-2 | 5 | 3 | 2.8 | 3.0 | 200-440/3P | 2 | Φ11.2 |
| SG75-3 | 7.5 | 3 | 1.8 | 3.0 | 200-440/3P | 3 | Φ11.2 |
| SG100-4 | 10 | 3 | 2.8 | 3.0*2 | 200-440/3P | 4 | Φ11.2 |
| SG150-6 | 15 | 3 | 1.8 | 3.0*2 | 200-440/3P | 6 | Φ11.2 |
| SG200-8 | 20 | 3 | 1.4 | 3.0*2 | 200-440/3P | 8 | Φ11.2 |
| SG250-10 | 25 | 3 | 1.1 | 3.0*2 | 200-440/3P | 10 | Φ11.2 |
