WEIGHING PRODUCTS

  • Floor Scale NA
  • Floor Scale NA
  • Floor Scale NA
Floor Scale NAFloor Scale NAFloor Scale NA

Floor Scale NA

  • 1, Most popular and best selling;
  • 2, High quality electronic parts ;
  • 3, Crystal display LCD ;
  • 4, 3-year warranty;
  • Product description: capacity 0-1000kg/2000kg/5000kg; Platform height: 70mm only; Platform size optional: 915x915mm/1220x1220mm/1500x1500mm;
  • INQUIRY   EMAIL

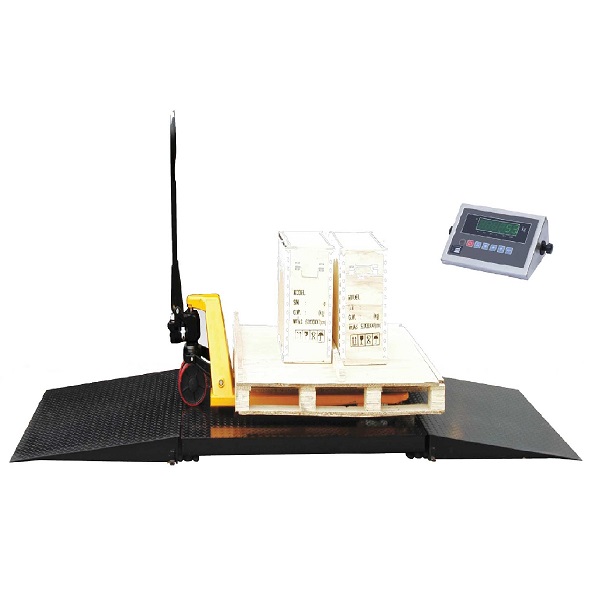

Stationary Floor Scale
▲ Rugged steel diamond plate surface with heavy duty welded channel support.
▲ Overload protection to 150% of capacity, adjustable leveling feet, can be pit mounted or free standing.
▲ Four alloy tool steel potted load cells.
▲ Durable power coat finish, 6 digit 7 segment display, bi-directional RS232 port, and operator controls for Zero, Tare, Unit, net/gross and print. Converts to lb. or kg. readout.

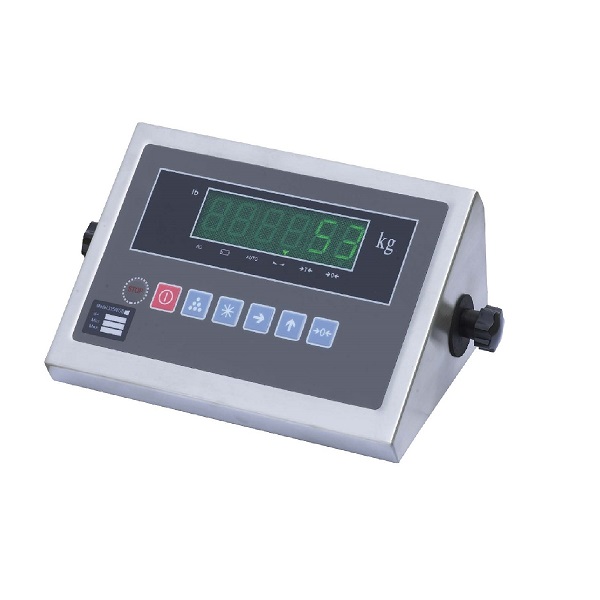

▲ Deluxe stainless steel indicator as standard.

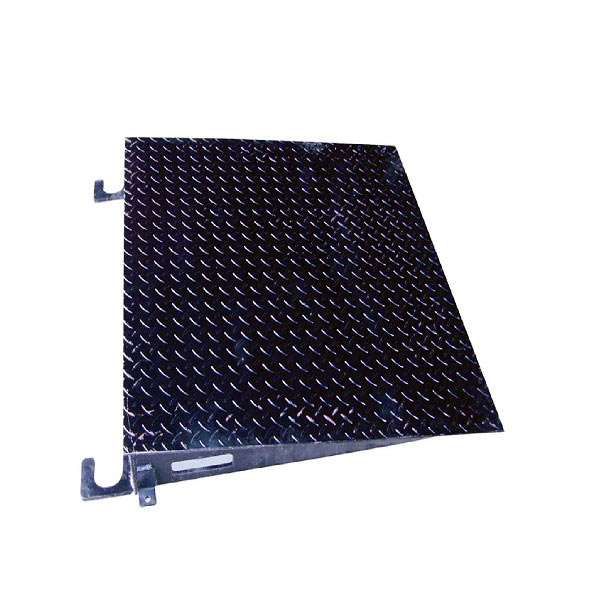

▲ Two slopes are optional equipments.
▲ Slopes LE36, LE48, LE60

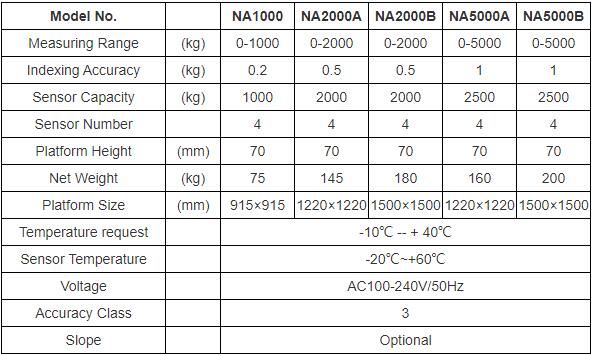

Model No.
NA1000 NA2000A NA2000B NA5000A NA5000B
Measuring Range (kg) 0-1000 0-2000 0-2000 0-5000 0-5000
Indexing Accuracy (kg) 0.2 0.5 0.5 1 1
Sensor Capacity (kg) 1000 2000 2000 2500 2500
Sensor Number
4 4 4 4 4
Platform Height (mm) 70 70 70 70 70
Net Weight (kg) 75 145 180 160 200
Platform Size (mm) 915×915 1220×1220 1500×1500 1220×1220 1500×1500
Temperature request
-10 -- + 40
Sensor Temperature
-20~+60
Voltage
AC100-240V/50Hz
Accuracy Class
3
Slope
Optional
