  • Bottle Jack 2-50T
  • Bottle Jack 2-50T
Bottle Jack 2-50TBottle Jack 2-50T

Bottle Jack 2-50T

  • 1, Hydraulic Cylinder;
  • 2, Load capacity for options;
  • 3, Easy to operate;
  • 4, 3-year warranty;
  • Product description: Capacity 2T/4T/5T/8T/10T/12T/16T/20T/30T/50T; Lifting height 90-180mm
  • INQUIRY   EMAIL

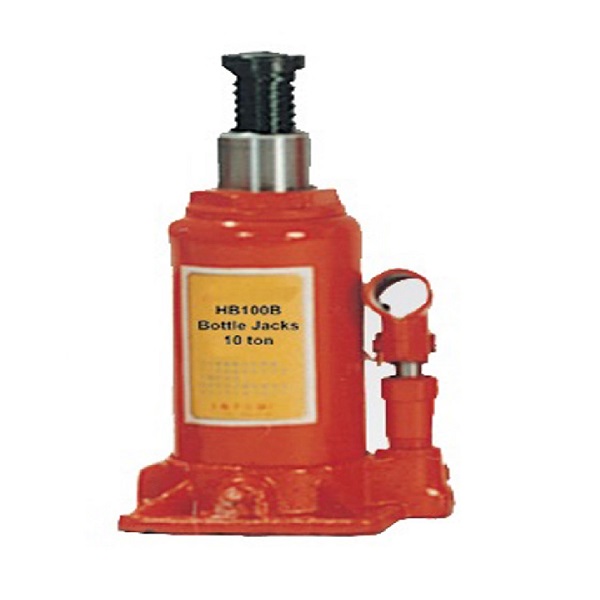

PROFESSIONAL TOE JACK HYDRAULIC BOTTLE JACK
▲ Versatile jacks can be used vertically (not upside down) or at any angle to not more than 5 degrees from vertical position.
▲ Can also be used horizontally or vertically in appropriately designed fixtures.
▲ Machined and polished cylinder walls ensure straight lifts, preventing uneven wear.
▲ Heat treated adjustable extension screw with cleaned lift saddle prevents slippage.
▲ Bottle jacks with lifting capacity of 12 tons and over have carrying handle for convenient moving or positioning.
▲ Patented bypass mechanism protects hydraulic cylinder from overpumped. Durable baked blue enamel finish.
▲ Conforms to ANSI/ASME safety standards/CE standard.

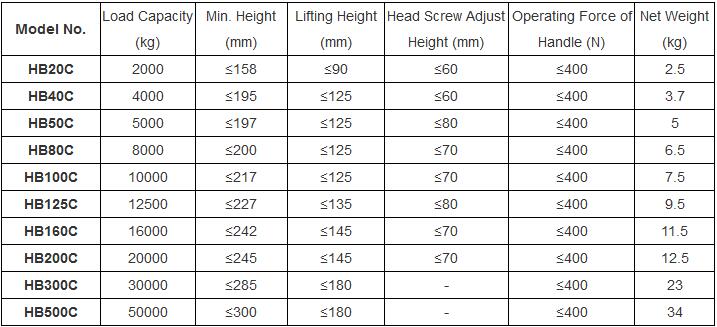

Model No. Load Capacity (kg) Min. Height (mm) Lifting Height (mm) Head Screw Adjust Height (mm) Operating Force of Handle (N) Net Weight (kg)
HB20C 2000 158 90 60 400 2.5
HB40C 4000 195 125 60 400 3.7
HB50C 5000 197 125 80 400 5
HB80C 8000 200 125 70 400 6.5
HB100C 10000 217 125 70 400 7.5
HB125C 12500 227 135 80 400 9.5
HB160C 16000 242 145 70 400 11.5
HB200C 20000 245 145 70 400 12.5
HB300C 30000 285 180 - 400 23
HB500C 50000 300 180 - 400 34
