Jacks

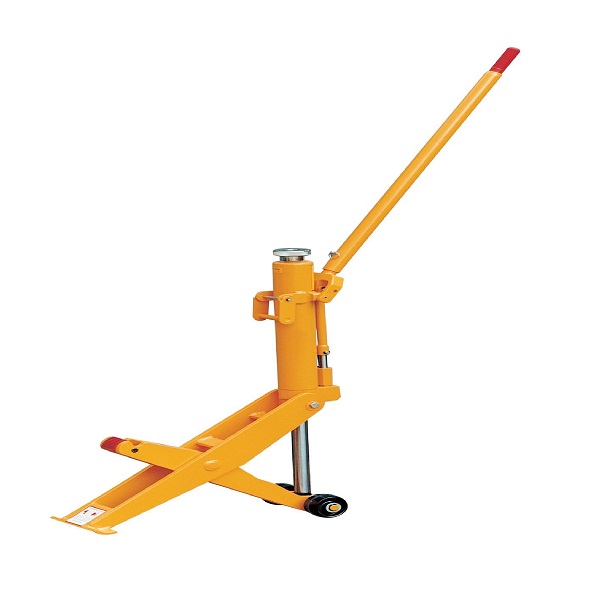

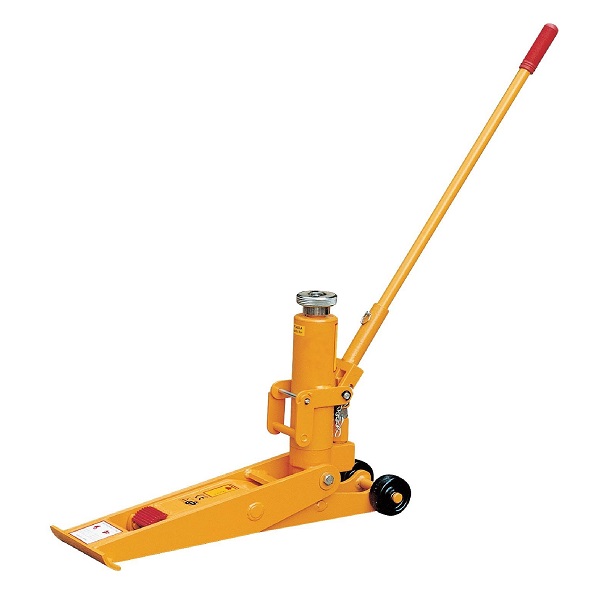

Forklift Jack HFJ

1, Hydraulic Cylinder;
2, Load capacity for options;
3, Easy to operate;
4, 3-year warranty;
Product description: Capacity 4Ton/5Ton/7Ton; Lifting height 65-406mm;
INQUIRY EMAIL

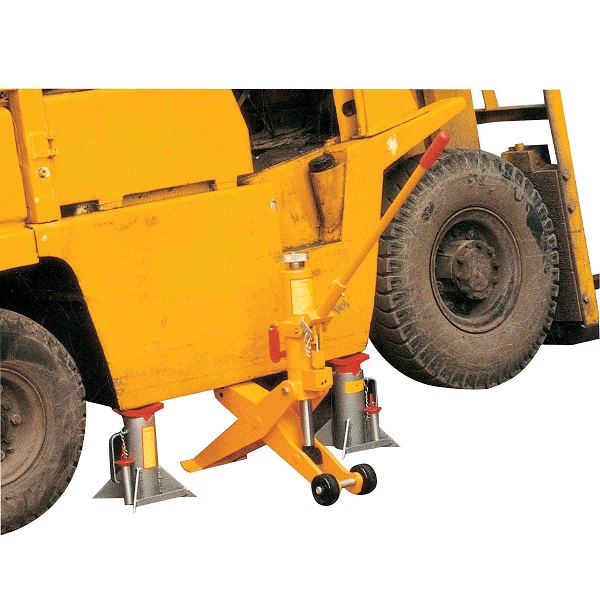

Forklift Maintenance Jack
▲ Compact and stable construction.
▲ Can be used in any position.
▲ Housing revolves 360 degrees.
▲ Lowering speed can be accurately adjusted.
▲ Protected against overloading.
▲ Pump lever is removable.
▲ According to CE and US standard USA ASME/ANSI B30.1.1986.

Model No.		HFJ-400A	HFJ-700A
Load Capacity	(kg/lbs)	4000/8800	7000/15400
Min. Lifting Height	(mm/in)	65/2-1/2"	65/2-1/2"
Max. Lifting Height	(mm/in)	406/16"	420/16-1/2"
Width	(mm/in)	203/8"	250/10"
Net Weight	(kg/lbs)	33kg/72.6lbs	49kg/107.80 lbs
Gross Wight	(kg/lbs)	35kg/77 lbs	53kg/116.60 lbs
Packing size	(mm)	740x240x480	845x275x715
