Mobile Lift Table

  • Tilter Table BL
  • Tilter Table BL
Tilter Table BLTilter Table BL

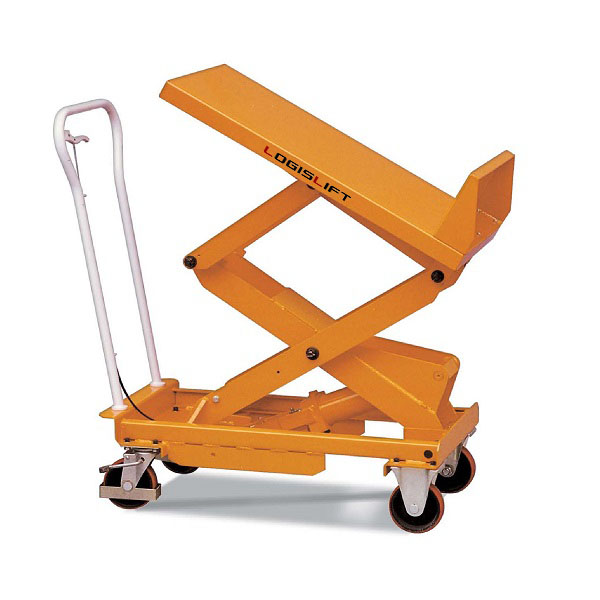

Tilter Table BL

  • 1, Mobile Lifting Table;
  • 2, Footpedal Lifting; Handle Lowering;
  • 3, Wheel with bracket for protection;
  • 4, 3-year warranty;

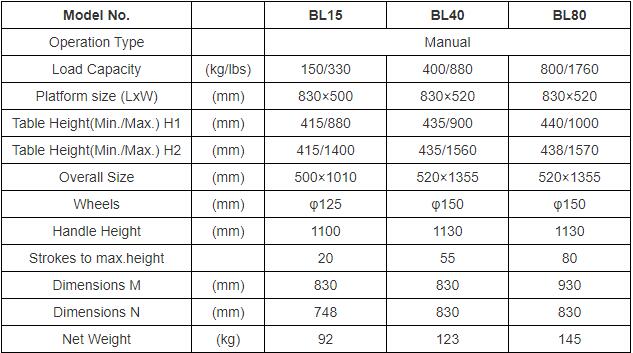

  • Product description: Capacity 150kg, 400kg, 800kg; Platform size 830x500mm, 830x520mm, Lifting Height 415-1000mm;

▲ The Lift &Tilt Tables are specifically designed to allow an operator to feed and unload parts from tote boxes or containers quickly and easily without lifting, bending, stretching, or reaching.
▲ When in its lift and tilt position, the unit holds totes or containers at a comfortable working height and angle that allows operators to easily reach parts even at the bottom of the container.

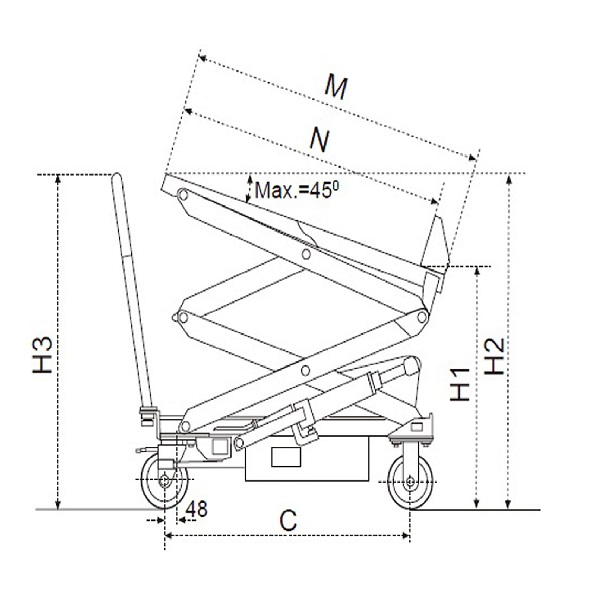

▲ The working table is elevated by means of a foot actuated hydraulic cylinder. As the table is raised, it automatically tilts to an angle of 45 at full elevation. Built-in retaining lip keeps containers in place.
