Static Lifting Table

  • Lifting Table HZ
  • Lifting Table HZ
Lifting Table HZLifting Table HZ

Lifting Table HZ

  • 1, Steel Plate Scissor Lifting Table;
  • 2, AC 110V/220V/230V/380V/400V/415V/460V;
  • 3, Mini size with low profile;
  • 4, 3-year warranty;

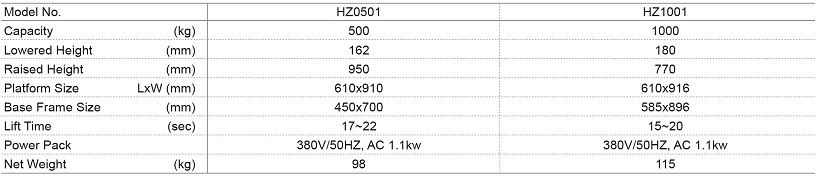

  • Product description: Capacity 500kg, 1000kg; Platform size 910x610mm; Lifting Height 165-950mm;
  • INQUIRY   EMAIL

MINI SCISSOR LIFT TABLE
▲Lift tables conform to EN norm and ANSI/ASME safety standards.
▲Upper platform lifted with safety bar preventing descent on contact with obstructions .
▲Low-tention (24V) control box with up-down buttons .
▲Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.
▲Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst.
▲Power supply :380-415-460V/50-60HZ/3phase or 110V-220-230-240V/50-60HZ/1 phase are available.

Inquiry
