Crane & Fork

Electric Crane LHB

1, Heav-duty design;
2, With higher lifting height;
3, More position for hooking;
4, 3-year warranty;
Product description: Load Capacity: 750kg; Lifting height: 200-3300mm;
INQUIRY EMAIL

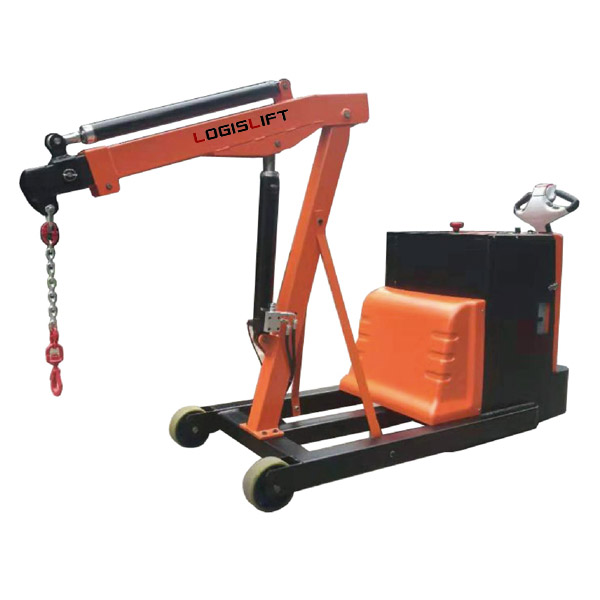

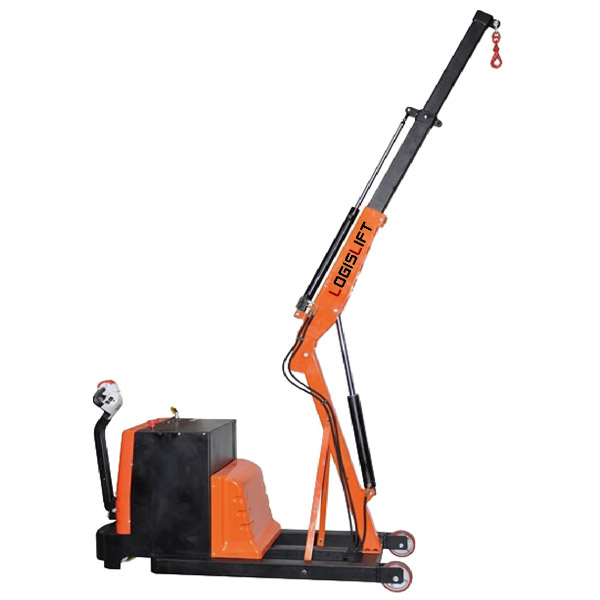

ELECTRIC COUNTER-BALANCED SHOP CRANE
▲ Full Electric type.
▲ Counter balanced shop crane.
▲ Unique operate handle, brake design, mobile and foldable.
▲ With double action hydraulic pump, fast and easy.
▲ Allows to work close to a machine.
▲ Tested 25% overload before delivery.
▲ Conforms to CE safety standard.

Model No.		LHB750
Max.Load Capacity	(kg)	750
Max load at jib length 925mm	(kg)	750
Max load at jib length 1500mm	(kg)	500
Max load at jib length 2100mm	(kg)	200
Min. Lifting Height	(mm)	1150
Max.Lifting Height	(mm)	3300
Driving Wheel	(mm)	PU, φ180x63
Front Wheel	(mm)	PU, φ180x60
Max. crane arm length	(mm)	2110
Min. crane arm length	(mm)	890
Overall Chassis Length	(mm)	1877
Overall Length (Arm Closed)	(mm)	2630
Overall Width	(mm)	760
Net Weight	(kg)	220
Total Weight(with counterweight)	(kg)	500
Battery	(V/Ah)	24/100
Charger	(V/A)	24/10
