Lifting Table HD

  • 1, Scissor Type Lifting Table;
  • 2, AC 110V/220V/230V/380V/400V/415V/460V;
  • 3, Pit Type, different platform optional;
  • 4, 3-year warranty;

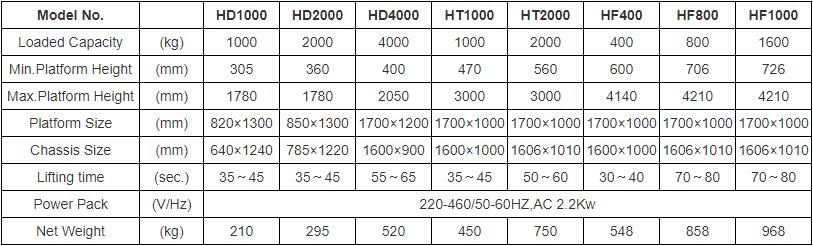

  • Product description: Capacity 1000kg, 2000kg, 3000kg, 4000kg; Platform size 1300x820mm/1300x850mm/1200x1700mm/1000x1700mm; Lifting Height 305-4210mm;

Multi-Scissor Heavy Duty Electric Scissor Lifting Table
▲Lift tables conform to EN norm and ANSI/ASME safety standards.
▲These models can be used in above-floor or in-floor pit applications.
Standard Safety Features .
▲Upper platform lifted with safety bar preventing descent on contact with obstructions .
▲Low-tention (24V) control box with up-down buttons .
▲Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.
▲Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst.
▲Power supply :110V-380-415-460V/50-60HZ/3phase or 220-230V/50-60HZ/1 phase are available.
