Static Lifting Table

  • U-shape Low profile
  • U-shape Low profile
  • U-shape Low profile
  • U-shape Low profile
U-shape Low profileU-shape Low profileU-shape Low profileU-shape Low profile

U-shape Low profile

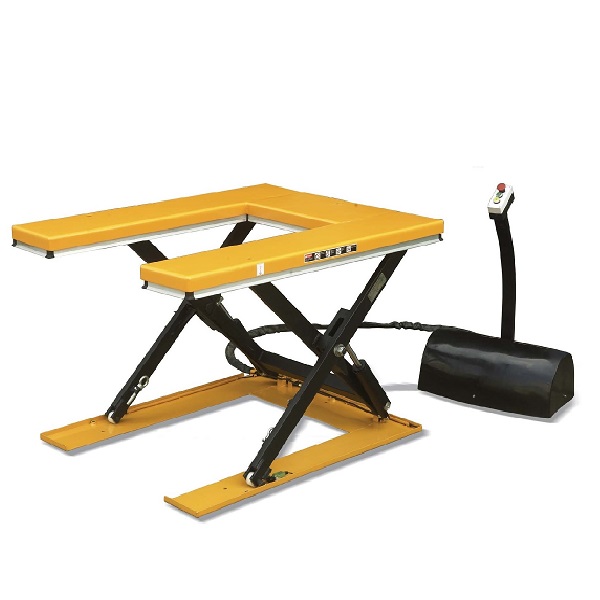

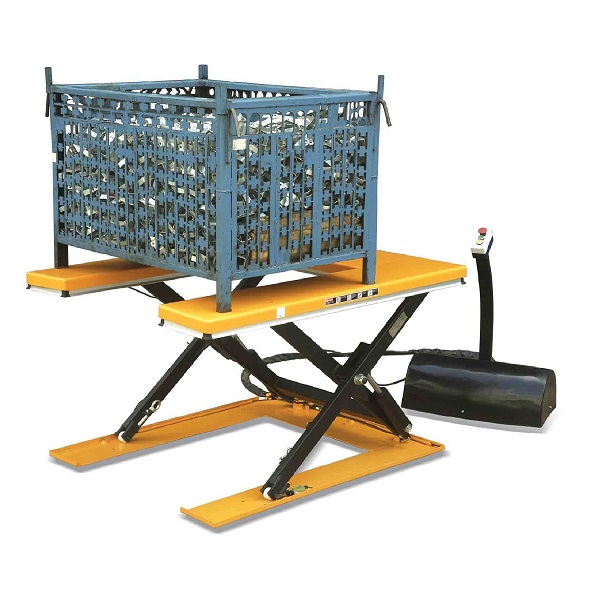

  • 1, Low Profile Scissor Type Lifting Table;
  • 2, AC 110V/220V/230V/380V/400V/415V/460V;
  • 3, Ground Type, different platform optional;
  • 4, 3-year warranty;

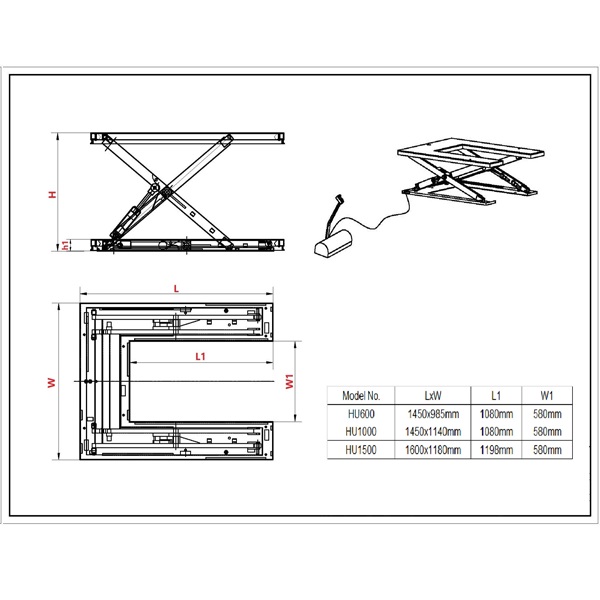

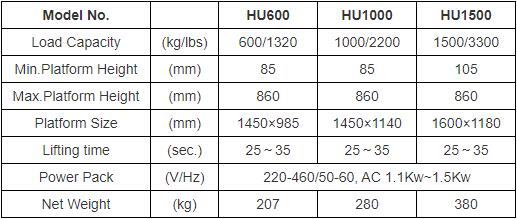

  • Product description: Capacity 600kg, 1000kg, 1500kg; Platform size 1450x1140mm/1450x985mm/1600x1180mm; Lifting Height 85-860mm;
  • INQUIRY   EMAIL

Low Profile Scissor Lifting Table Electric Scissor Lifting Table
▲Lift tables conform to EN norm and ANSI/ASME safety standards.

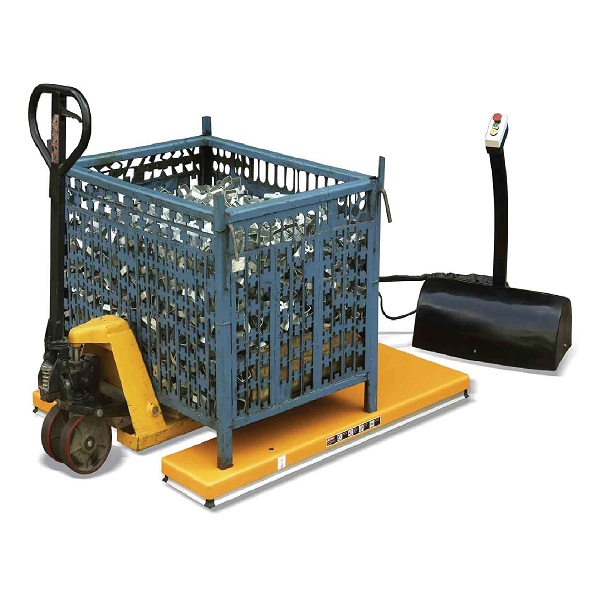

▲These models can be used in above-floor or in-floor pit applications.
Standard Safety Features .
▲Upper platform lifted with safety bar preventing descent on contact with obstructions .
▲Low-tention (24V) control box with up-down buttons .
▲Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.
▲Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst.
▲Power supply : 380-415-460V/50-60HZ/3phase or 220-230V/50-60HZ/1 phase are available.
