Static Lifting Table

  • Super Low profile HX
  • Super Low profile HX
Super Low profile HXSuper Low profile HX

Super Low profile HX

  • 1, Low Profile Scissor Type;
  • 2, AC 110V/220V/230V/380V/400V/415V/460V;
  • 3, Ground Type, different platform optional;
  • 4, 3-year warranty;

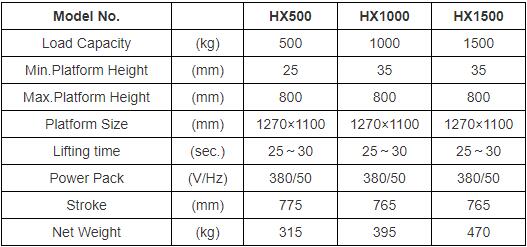

  • Product description: Capacity 500kg/1000kg/1500kg; Platform size 1270x1100mm; Lifting Height 35-800mm;

▲ Heavy duty design for large platform.
▲ These tables achieve a low closed height, eliminating the need for a pit installation.
▲ They are manufactured to all European safety standards including EN1570:1999.
▲ Remote power pack with pedestal and controls, IP54 protection.
▲ Upper platform fitted with safety perimeter to prevent descent on contact with obstructions.
▲ 24V control box with UP and DOWN buttons and emergency stop.
▲ External power pack equipped with a relief valve against overloading and a compensated flow valve for controlling lowering speed. Power supply are AC 380V/50HZ/3phase.
▲ Hose burst safety valve to stop the lift table lowering in case of hose breakage.
▲ Removable lifting eyes to facilitate handling and installation of the lift table.
▲ Oil-less bushings on pivot points.
▲ Loading ramp is a standard equipment.
