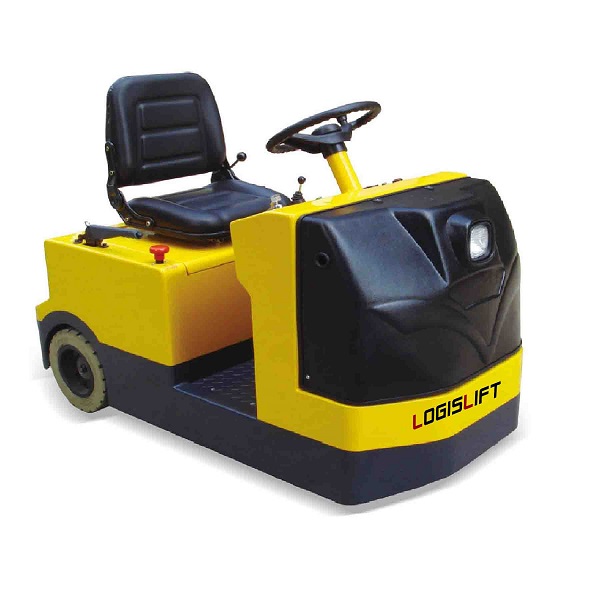

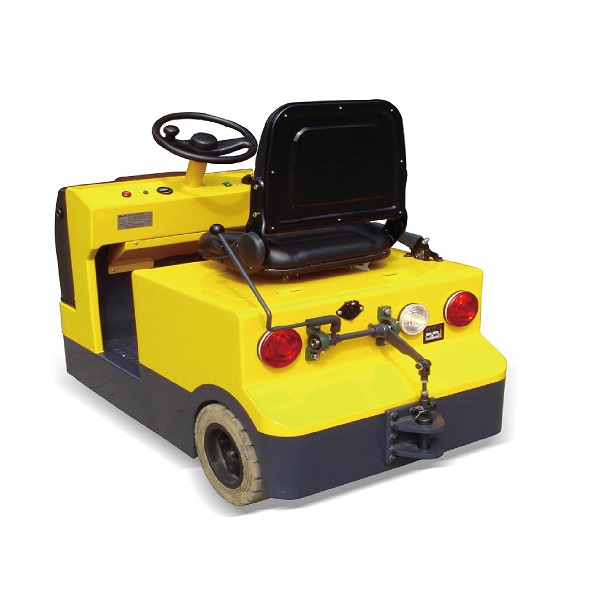

Tow Tractor QDFTow Tractor QDF

Tow Tractor QDF

  • 1, Electric type with traction battery;
  • 2, Seated Type;
  • 3, US Curtis control system;
  • 4, 3-year warranty;
  • Product description: capacity 3000kg/4500kg;


Model No. QDF30/QDF45
Operation Battery, Seated
Load Capacity (kg/lbs) 3000/6600~4500/9900
Rated Traction Force (N) 820
Wheelbase (mm/inch) 1130/44.5
Services Weight(with battery) (kg/lbs) 770/1700
Axle Load(Front/Rear) (kg) 244/526
Tyre(Front/Rear) (mm) φ267×76×165/φ330×114×203, Solid Rubber
Wheel Number(Front/Rear,X=driven) 2/2X
Track Width(Front/Rear) (mm) 138/705
Height of Seat(stand-on platform) (mm) 750
Towing Bracket middle Height (mm) 240
Platform Height (mm) 660
Rear Overhang (mm) 360
Overall Length (mm) 1690
Overall Width (mm) 820
Ground Clearance(centre of wheelbase) (mm) 80
Turning Radius (mm) 1430
Drive Motor(60 minute rating) Kw(Hp) 2.5
Battery Voltage(rated capacity,5 h) (V/Ah) 24/300
Battery Weight (kg) (kg) (±5%)256
Type of Drive Control Electronic, MOSFET
Noise Level at Operator's Ear dB(A) 66
Travel Speed(with/without load) Km/h(Mph) 6/7.2
Service Brake Mechanism drum
