Forklifts & Tractors

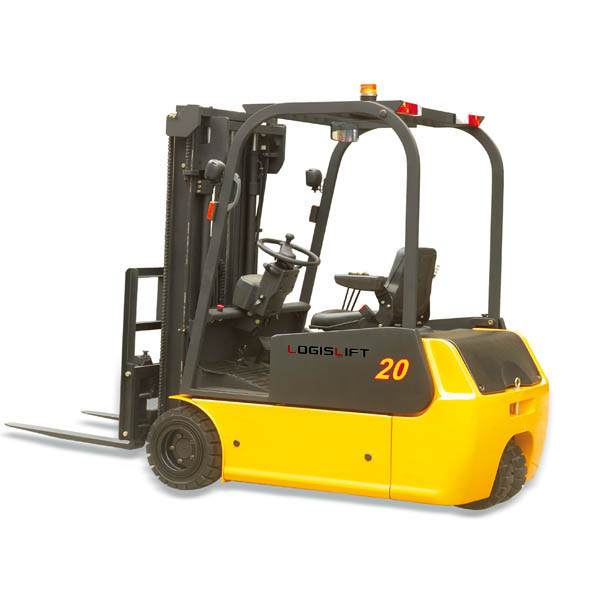

Electric Forklift

1, Electric type with traction battery;
2, Different capacity & Lifting Height for options;
3, High quality transmission and Controller;
4, 3-year warranty;
Product description: capacity 2000kg/2500kg/3000kg;
INQUIRY EMAIL

ELECTRIC FORKLIFT
▲ Simple, small-stroke F/R Lever;
▲ Automatic-Style Light/Turn-signal Lever;
▲ Wide-Open operation Space.
▲ Special Lifting height is available. Attachments available.

Model No.		CPD15F	CPD20F	CPD30F
Drive Type		Electric	Electric	Electric
Operator type		Seated	Seated	Seated
Load capacity	(tones)	1.5	2	2.5
Load center	(mm)	500	500	500
Tyre type		pneumatic	pneumatic	pneumatic
Tyre size, driving wheels		6.5-10-10PR	23×9-10	23×9-10
Tyre size, steering wheels		5.00-8-10PR	18×7-8	18×7-8
Wheels,number driving/steering(X=drive wheels)	(mm)	2x/2	2x/2	2x/2
Tread, Driving wheels	(mm)	890	1045	1045
Tread, Steering wheels	(mm)	920	950	950
Mast/fork carriage tilt, forward/backward		6/11	6/12	6/12
Height, mast lowered	(kg)	2060	2180	2180
Free lift	(mm)	120	120	120
Lift height	(mm)	3000	3000	3000
Height, mast extended	(mm)	4010	4010	4010
Height of overhead guard	(mm)	2098	2180	2180
Overall lenght	(mm)	3090	3376	3376
Overall width	(mm)	1080	1252	1252
Fork dimensions	(mm)	40×100×920	40×120×1070	40×120×1070
Aisle width for pallets 1000×1200 crossways	(mm)	4205	4235	4235
Aisle width for pallets 800×1200 lengthways	(mm)	4245	4285	4285
Turning radius	(mm)	2045	2135	2135
Travel speed, laden/unladen	(Km/h)	14/14.5	13/13.5	13/13.5
Lifting speed, laden/unladen	(m/s)	0.3/0.45	0.3/0.45	0.3/0.45
Lowing speed, laden/unladen	(m/s)	0.45/0.44	0.44/0.435	0.44/0.435
Drive motor rating	(Kw)	8	11	11
Lifting motor rating	(kW)	11	13	8.6
Battery voltage/rated capacity	(V/Ah)	48/540	48/600	48/630
Drive system		AC	AC	AC
Service weight (include battery)	(kg)	3050	3860	4030
